COMPUTER APPLICATION

Work In Progress (1)

Week 1 - Floor Plan

Found a project online and start drawing the floor plan

Week 2 - Flooring

After doing the floor planand start with the flooring

Week 3 - Walls

After finishing the flooring, start with the walls

Week 4 - Walls

Doing walls.

Week 5 - Sections

Cut off section to check the walls and interior.

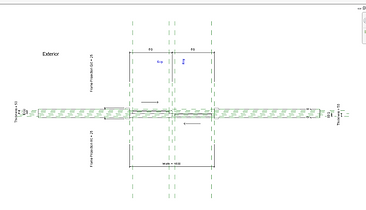

Week 6 - Door Family

Doing door family to place in the model .

Week 7 - Window Family

Doing window family to put into the model and some touch up on the model.

Week 8 - 3D View

Overall view of the house after touching up.

Week 9 - Orthographic Drawing

Produce orthographic drawing for submission.

Work In Progress (2)

I have learned about the lifelong learning skills from this assignments. This assignment allows us to learn independently and also intellectual engaged. Besides, I also learned about manage myself and be self-reliant to complete this assignment.
